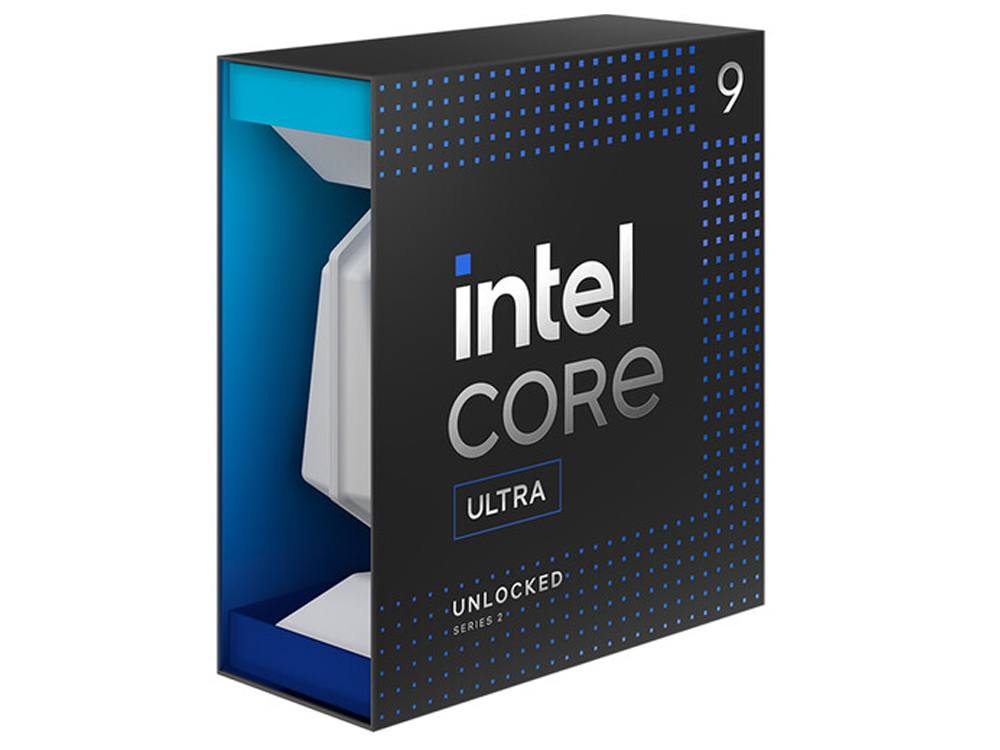

Intel® Core™ Ultra 9 Processor 285K (36M Cache- up to 5.70 GHz) |
|
|
| Essentials |
| Product Collection |
Intel® Core™ Ultra Processors (Series 2) |
| Code Name |
Products formerly Arrow Lake |
| Vertical Segment |
Desktop |
| Processor Number |
285K |
| Overall Peak TOPS (Int8) |
36 |
|
|
| CPU Specifications |
| Total Cores |
24 |
| # of Performance-cores |
8 |
| # of Efficient-cores |
16 |
| Total Threads |
24 |
| Max Turbo Frequency |
5.7 GHz |
| Intel® Thermal Velocity Boost Frequency |
5.7 GHz |
| Intel® Turbo Boost Max Technology 3.0 Frequency ‡ |
5.6 GHz |
| Performance-core Max Turbo Frequency |
5.5 GHz |
| Efficient-core Max Turbo Frequency |
4.6 GHz |
| Performance-core Base Frequency |
3.7 GHz |
| Efficient-core Base Frequency |
3.2 GHz |
| Cache |
36 MB Intel® Smart Cache |
| Total L2 Cache |
40 MB |
| Processor Base Power |
125 W |
| Maximum Turbo Power |
250 W |
| Intel® Deep Learning Boost (Intel® DL Boost) on CPU |
Yes |
| AI Software Frameworks Supported by CPU |
OpenVINO™ | WindowsML | DirectML | ONNX RT | WebNN |
| CPU Lithography |
TSMC N3B |
|
|
| Memory Specifications |
| Max Memory Size (dependent on memory type) |
192 GB |
| Memory Types |
Up to DDR5 6400 MT/s |
| Maximum Memory Speed |
6400 MHz |
| Max # of Memory Channels |
2 |
| ECC Memory Supported ‡ |
Yes |
|
|
| GPU Specifications |
| GPU Name‡ |
Intel® Graphics |
| Graphics Base Frequency |
300 MHz |
| Graphics Max Dynamic Frequency |
2 GHz |
| GPU Peak TOPS (Int8) |
8 |
| Graphics Output |
DP2.1 UHBR20 | HDM2.1 FRL 12GHz | eDP1.4b |
| Xe-cores |
4 |
| Max Resolution (HDMI)‡ |
4K @ 60Hz (HDMI 2.1 TMDS) 8K @ 60Hz (HDMI2.1 FRL) |
| Max Resolution (DP)‡ |
8K @ 60Hz |
| Max Resolution (eDP - Integrated Flat Panel)‡ |
4K @ 60Hz |
| DirectX* Support |
12 |
| OpenGL* Support |
4.5 |
| OpenCL* Support |
3 |
| Intel® Quick Sync Video |
Yes |
| # of Displays Supported ‡ |
4 |
| Device ID |
0x7D67 |
| Intel® Deep Learning Boost (Intel® DL Boost) on GPU |
Yes |
|
|
| NPU Specifications |
| NPU Name‡ |
Intel® AI Boost |
| NPU Peak TOPS (Int8) |
13 |
| Sparsity Support |
Yes |
| Windows Studio Effects Support |
Yes |
| AI Software Frameworks Supported by NPU |
OpenVINO™ | WindowsML | DirectML | ONNX RT | WebNN |
|
|
| Expansion Options |
| Direct Media Interface (DMI) Revision |
4 |
| Max # of DMI Lanes |
8 |
| Intel® Thunderbolt™ 4 |
Yes |
| Scalability |
1S Only |
| PCI Express Revision |
5.0 and 4.0 |
| PCI Express Configurations ‡ |
Up to 1x16+2x4 | 2x8+2x4 | 1x8+4x4 |
| Max # of PCI Express Lanes |
24 |
|
|
| Package Specifications |
| Sockets Supported |
FCLGA1851 |
| Max Operating Temperature |
105 °C |
|
|
| Advanced Technologies |
| Intel® Volume Management Device (VMD) |
Yes |
| Intel® Gaussian & Neural Accelerator |
3.5 |
| Intel® Thread Director |
Yes |
| Intel® Speed Shift Technology |
Yes |
| Intel® Thermal Velocity Boost |
Yes |
| Intel® Turbo Boost Max Technology 3.0 ‡ |
Yes |
| Intel® Turbo Boost Technology ‡ |
2 |
| Intel® 64 ‡ |
Yes |
| Instruction Set |
64-bit |
| Instruction Set Extensions |
Intel® SSE4.1 | Intel® SSE4.2 | Intel® AVX2 |
| Idle States |
Yes |
| Enhanced Intel SpeedStep® Technology |
Yes |
| Thermal Monitoring Technologies |
Yes |
|
|
| Security & Reliability |
| Intel vPro® Eligibility ‡ |
Intel vPro® Enterprise | Intel vPro® Platform |
| Intel® Threat Detection Technology (TDT) |
Yes |
| Intel® Active Management Technology (AMT) ‡ |
Yes |
| Intel® Standard Manageability (ISM) ‡ |
Yes |
| Intel® Remote Platform Erase (RPE) ‡ |
Yes |
| Intel® One-Click Recovery ‡ |
Yes |
| Intel® Hardware Shield Eligibility ‡ |
Yes |
| Intel® Control-Flow Enforcement Technology |
Yes |
| Intel® Total Memory Encryption - Multi Key |
Yes |
| Intel® AES New Instructions |
Yes |
| Secure Key |
Yes |
| Intel® Trusted Execution Technology ‡ |
Yes |
| Execute Disable Bit ‡ |
Yes |
| Intel® OS Guard |
Yes |
| Intel® Boot Guard |
Yes |
| Mode-based Execute Control (MBEC) |
Yes |
| Intel® Stable IT Platform Program (SIPP) |
Yes |
| Intel® Virtualization Technology with Redirect Protection (VT-rp) ‡ |
Yes |
| Intel® Virtualization Technology (VT-x) ‡ |
Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) ‡ |
Yes |
| Intel® VT-x with Extended Page Tables (EPT) ‡ |
Yes |
