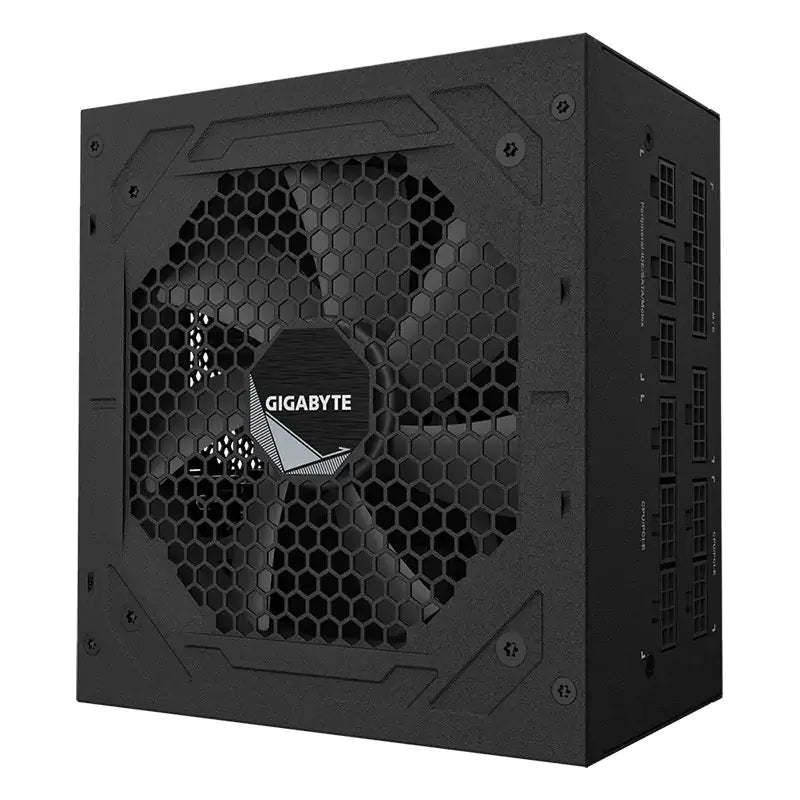

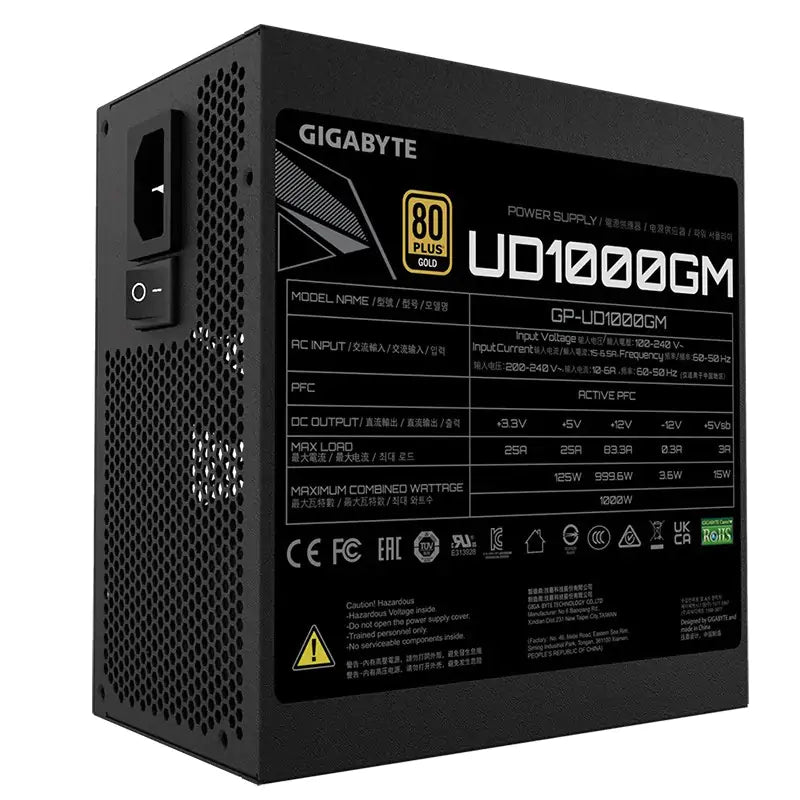

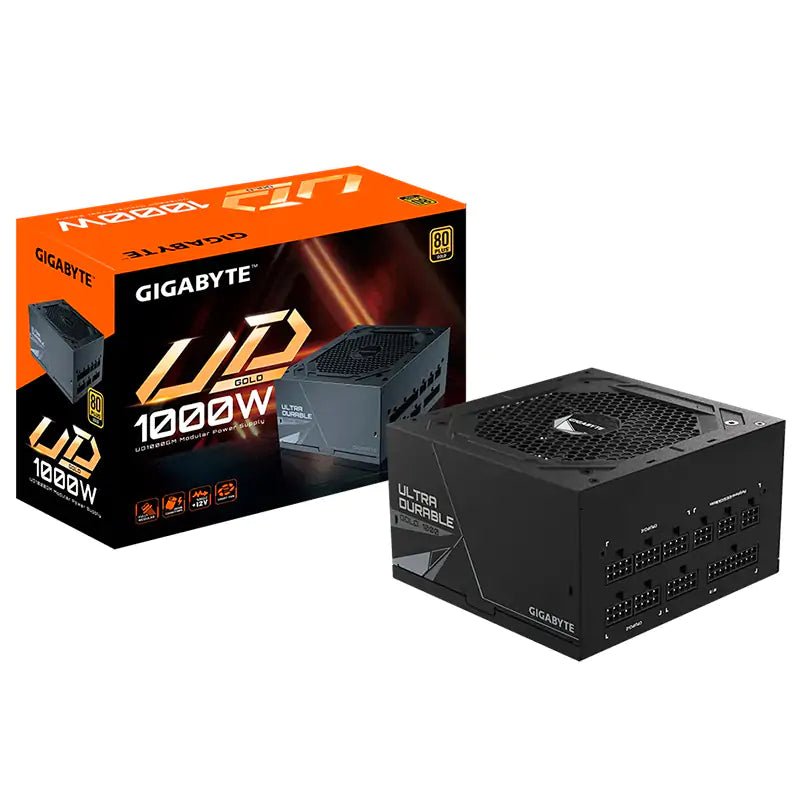

Gigabyte 1000W 80+ Gold Fully Modular PCIe 5.1 ATX 12V v3.1 Power Supply
Gigabyte 1000W 80+ Gold Fully Modular PCIe 5.1 ATX 12V v3.1 Power Supply
Gigabyte 1000W 80+ Gold Fully Modular PCIe 5.1 ATX 12V v3.1 Power Supply
Gigabyte 1000W 80+ Gold Fully Modular PCIe 5.1 ATX 12V v3.1 Power Supply
Gigabyte 1000W 80+ Gold Fully Modular PCIe 5.1 ATX 12V v3.1 Power Supply

Gigabyte 1000W 80+ Gold Fully Modular PCIe 5.1 ATX 12V v3.1 Power Supply

Vendor: GIGABYTE
SKU: GP-UD1000GM PG5 V2
Availability: In stock
Product type: Power Supply
$209.00
$209.00
Buy Now, Pay Later with Zip, Afterpay, Klarna or Shop Pay
Subtotal: $209.00
Ask an expert
Description

Product Description

The Gigabyte 1000W Ultra Durable 80+ Gold Modular ATX V2.31 Power Supply (GP-UD1000GM) is engineered to deliver high-performance, rock-solid power for high-end gaming rigs and professional workstations. As a premier option for enthusiasts building i gaming computers, this fully modular power supply features high-quality main Japanese capacitors, an enhanced thermal solution, and a 120mm smart hydraulic bearing (HYB) fan that remains silent during low-load operation. Certified with 80 PLUS Gold efficiency, it ensures up to 90% power delivery at typical loads, reducing energy waste and excess heat generation. If you are sourcing custom gaming PC parts locally in Perth, visiting a reliable Perth computer store ensures you get genuine local warranty support and expert advice for your next upgrade. Built with a powerful single +12V rail and comprehensive OVP/OPP/SCP/UVP/OCP/OTP circuit protections, this compact 140mm PSU fits easily into tight chassis configurations while maintaining total system stability under heavy gaming or overclocking conditions.

1653958649377320

Specification

Type

Intel Form Factor ATX 12V v2.31

PFC

Active PFC (>0.9 typical)

Input Voltage

100-240 Vac (full range)

Input Current

15-6.5A

Input Frequency

60-50 Hz

Output Capacity

1000W

Dimension

150 x 140 x 86 mm

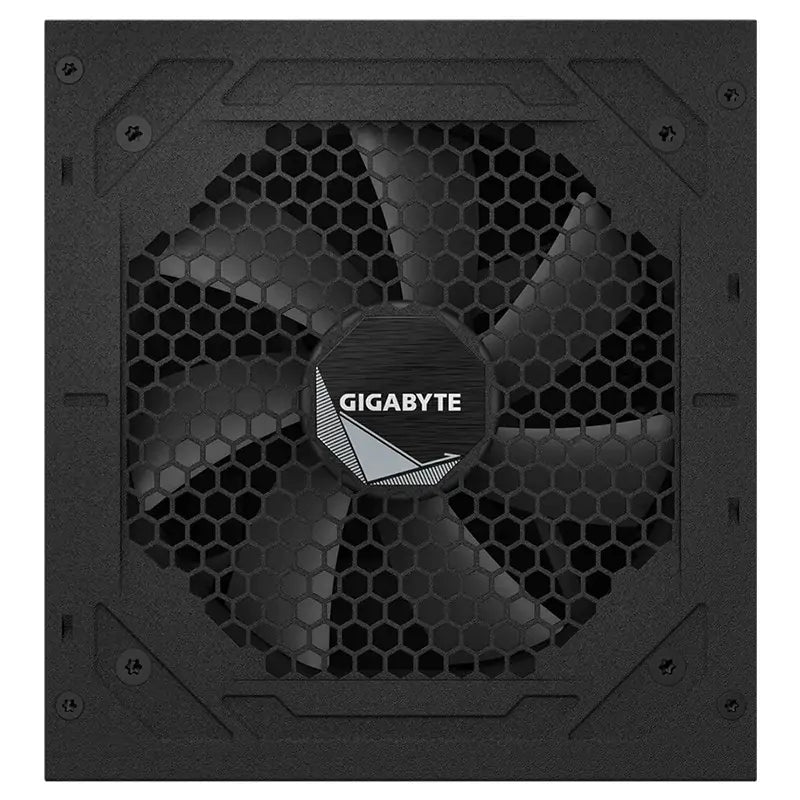

Fan Type

120mm Hydraulic Bearing(HYB)fan

80 PLUS

Gold

Efficiency

90% at typical load

MTBF

>100,000 hours

Protection

OVP/OPP/SCP/UVP/OCP/OTP

Power Good Signal

100-150ms

Hold Up Time

>16ms

Cable Type

Flat, All black

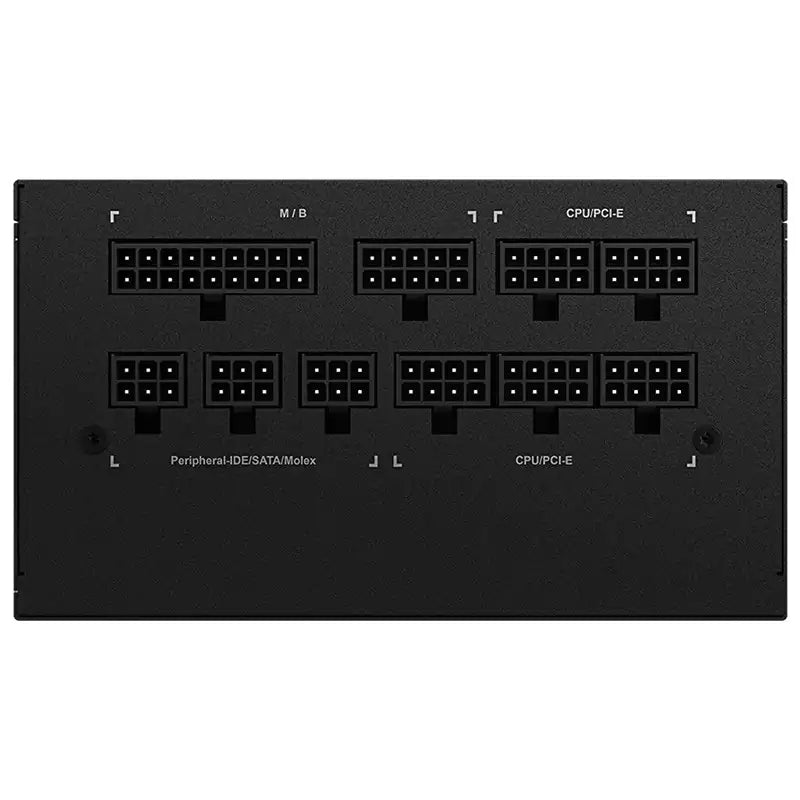

Connectors

ATX/MB 20+4 Pin x 1 : 610mm*1

CPU/EPS 4+4 Pin x 2 : 600mm*2

PCI-e 6+2 Pin x 6 : 600mm+150mm*3

SATA x 8 :

600mm+150mm+150mm+150mm*2

4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1
Read more
