Specification

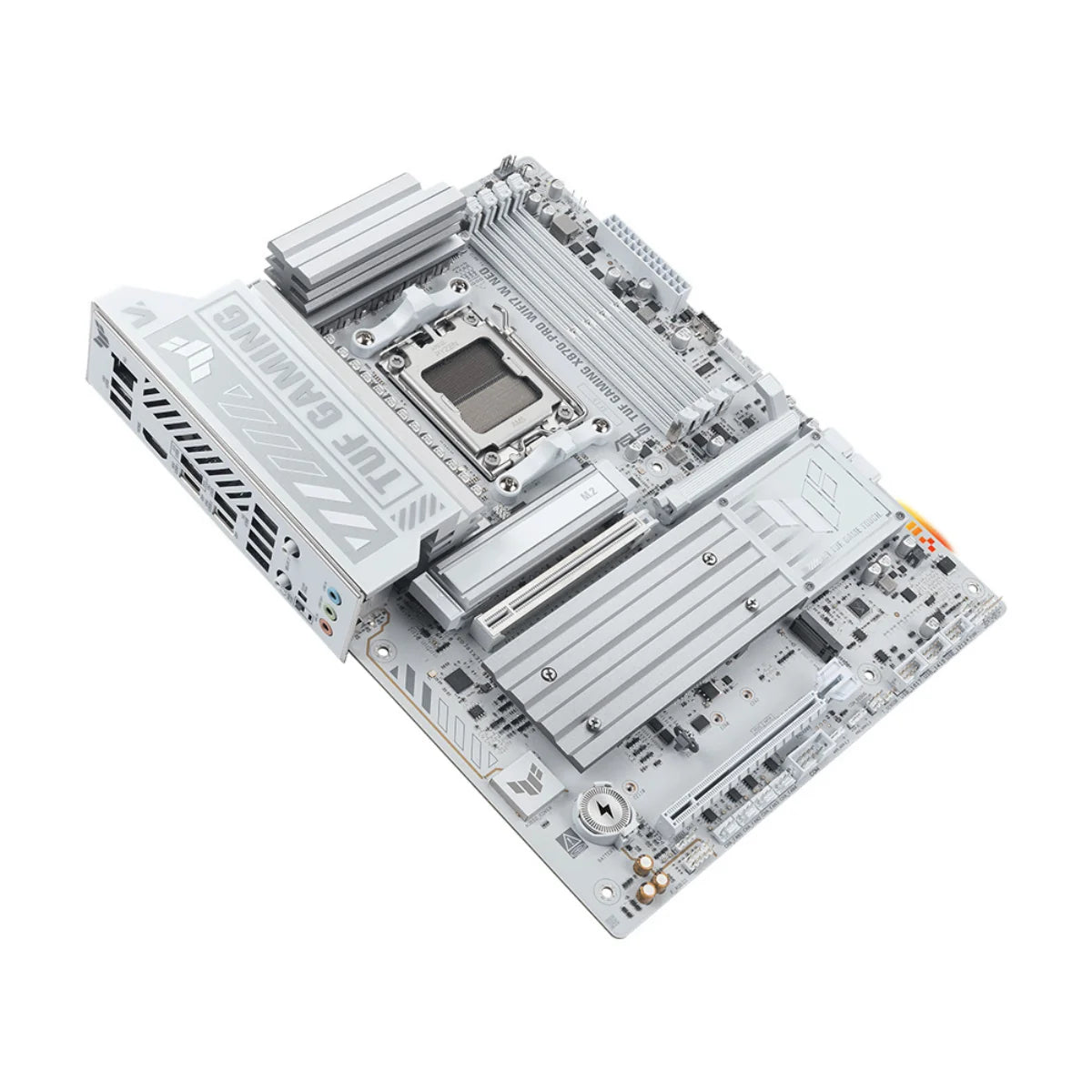

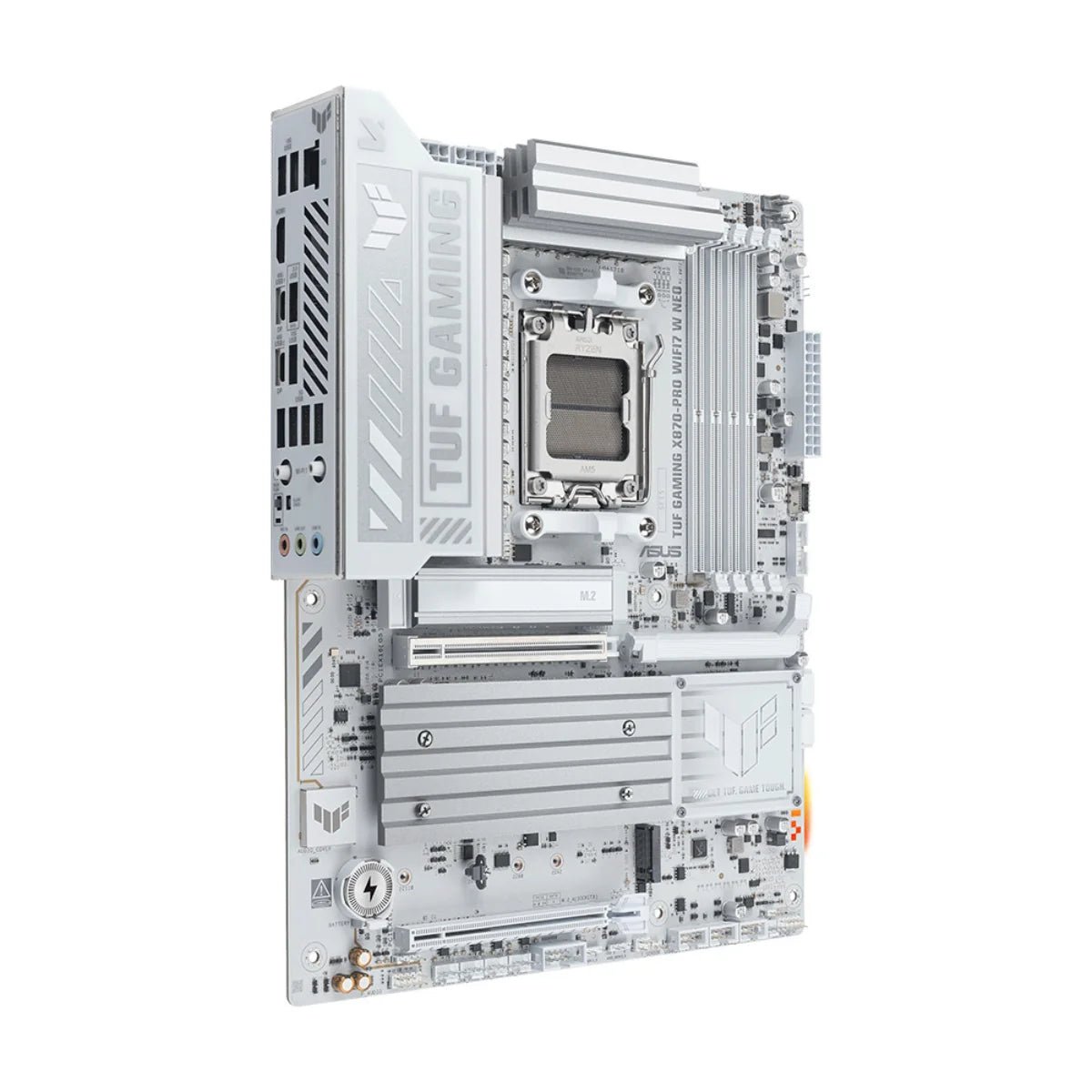

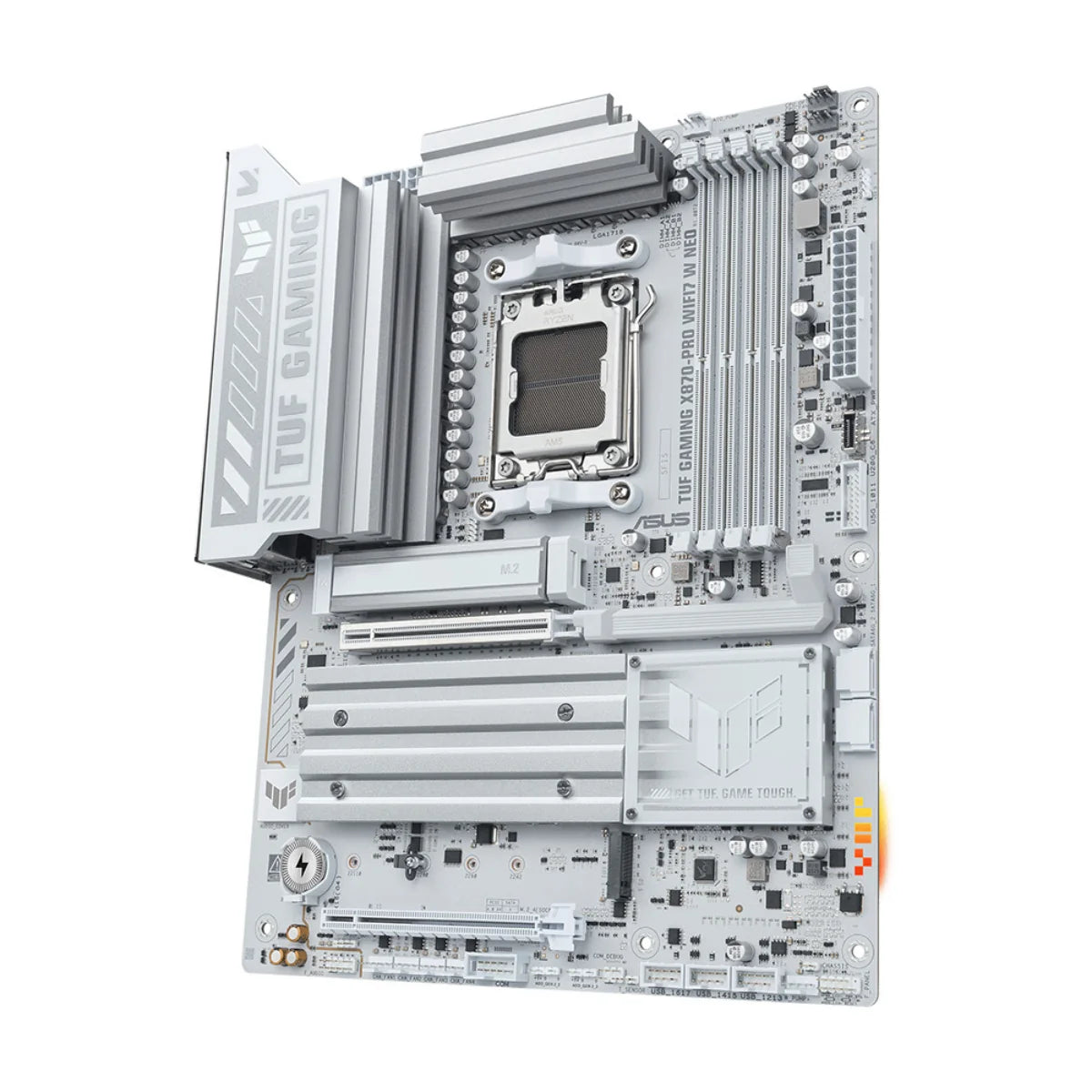

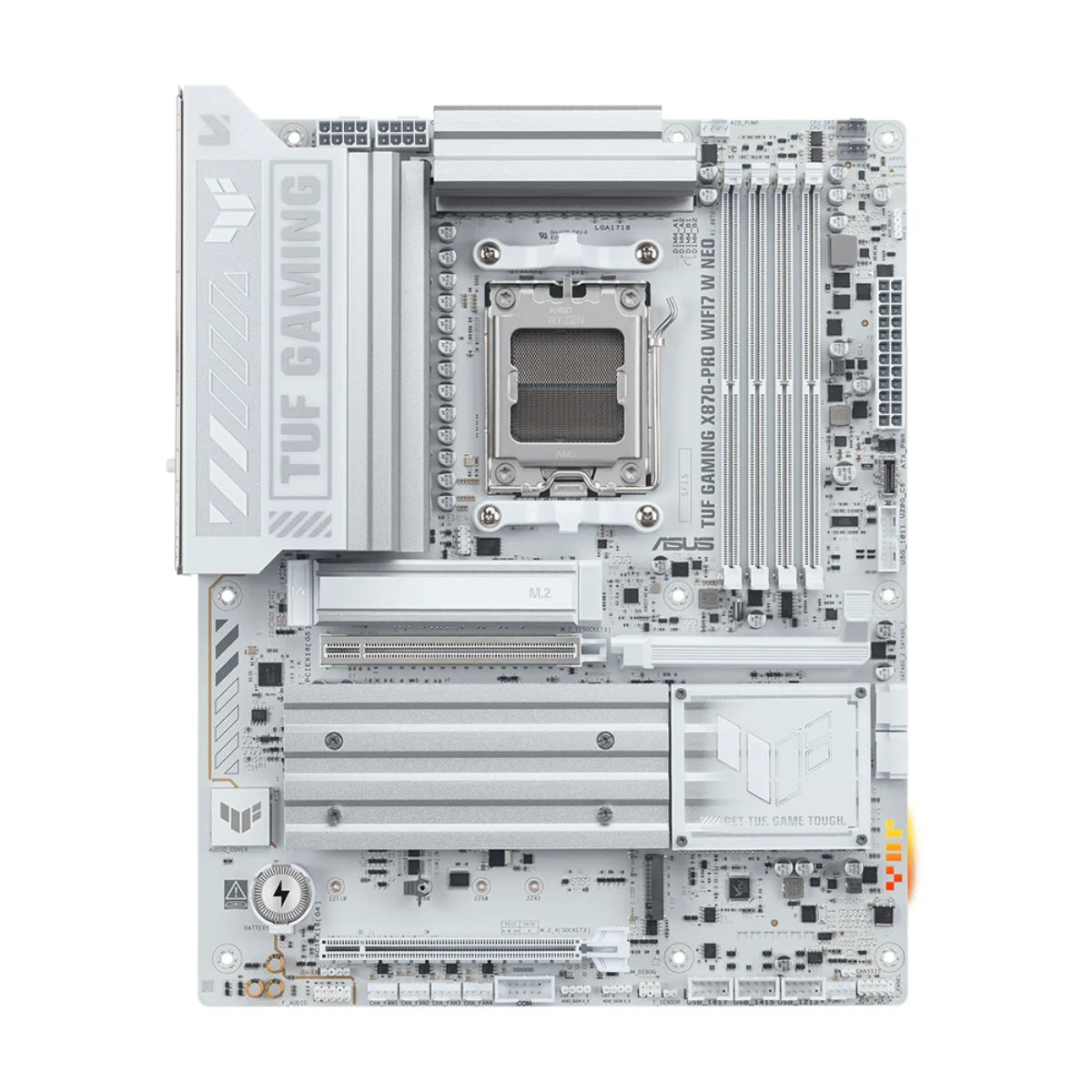

The ASUS TUF Gaming X870-PRO WiFi7 W NEO anchors high-performance white AM5 builds with a robust 16+2+1 (80A) power stage design and dual PCIe 5.0 M.2 slots. Built around the AMD X870 chipset, this ATX motherboard provides the power delivery and extensive connectivity required for heavy multi-core workloads, high-speed storage arrays, and sustained gaming sessions.

16+2+1 power stages for stable multi-core performance

Modern AMD Ryzen processors demand precise voltage regulation to hit and maintain their maximum boost clocks. This board utilizes a 16+2+1 power stage design, rated for 80 amps per stage, to deliver clean and consistent power directly to the CPU socket. This heavy-duty VRM configuration prevents voltage drops and thermal throttling when the system is under heavy load, ensuring system stability during intense rendering tasks or competitive gaming.

Dual PCIe 5.0 M.2 slots and DDR5-9600+ support

The X870-PRO WiFi7 W NEO is equipped to handle the fastest storage and memory standards available for the AM5 platform. It features four M.2 slots in total, including two PCIe 5.0 x4 slots for next-generation NVMe drives that require maximum bandwidth for rapid asset loading and large file transfers. Two additional PCIe 4.0 x4 M.2 slots provide extensive expansion capacity.

For system memory, four DDR5 DIMM slots support up to 256 GB of total capacity. With support for memory speeds up to 9600+ MT/s via overclocking, builders can tune their memory latency and bandwidth to keep frame times consistent in CPU-bound titles.

Wi-Fi 7 and 5Gb Ethernet for unbottlenecked networking

Networking capabilities are designed for environments where latency and throughput are critical. The integrated Wi-Fi 7 (802.11be) 2x2 module supports wider channels and improved modulation, reducing wireless congestion and dropping latency for competitive multiplayer games. For wired setups, the Realtek 5Gb Ethernet port offers five times the bandwidth of standard Gigabit connections, dramatically accelerating large file transfers across local network-attached storage.

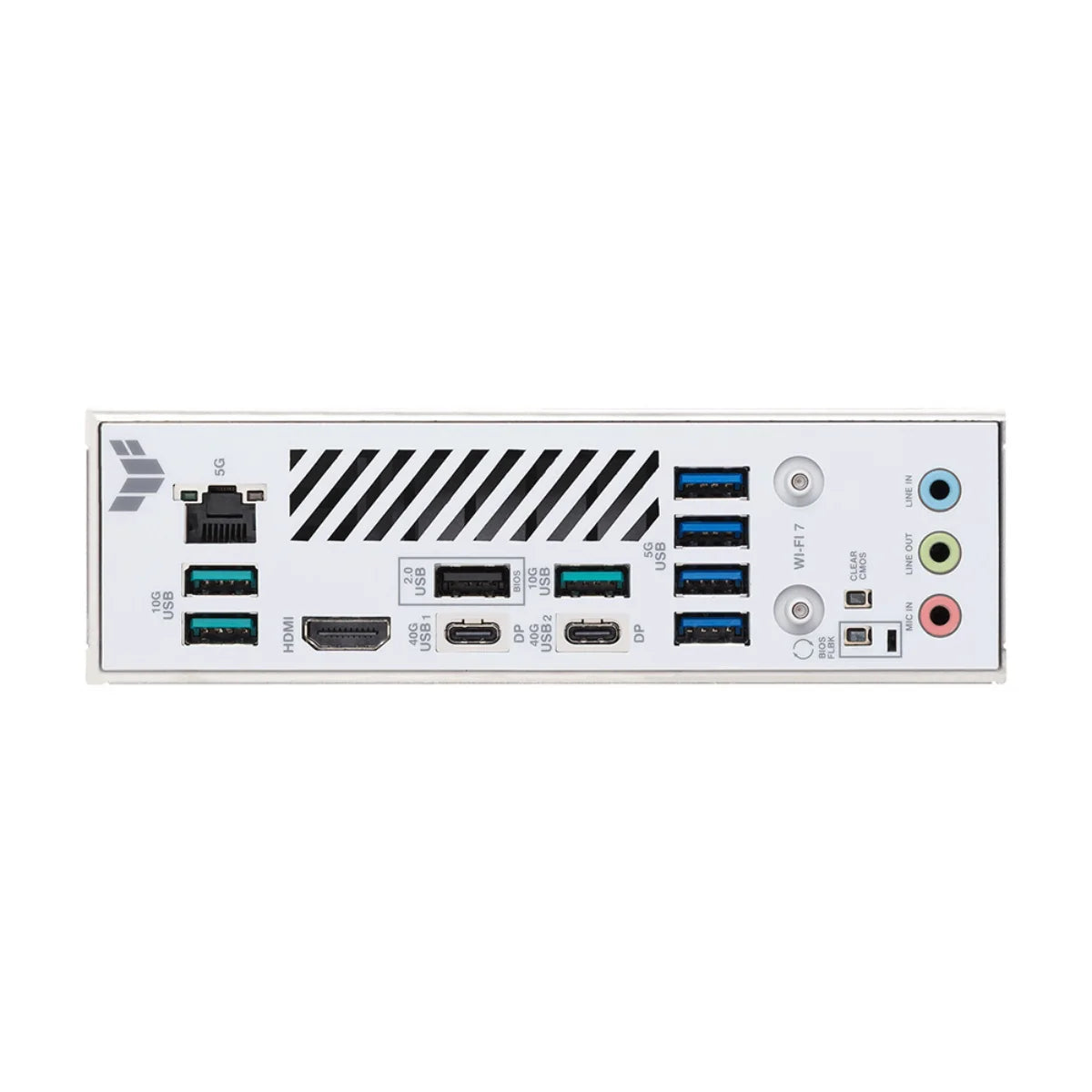

Dual 40Gbps USB4 ports and comprehensive I/O

The rear I/O panel provides extensive connectivity for modern peripherals, high-resolution displays, and external storage arrays. Two USB4 Type-C ports deliver up to 40Gbps of bandwidth each and support DisplayPort video output. Audio is handled by the Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC, providing clear positional audio for gaming and high-fidelity playback for media.
